Install the sensor line for the contactless trunk opening (bottom)

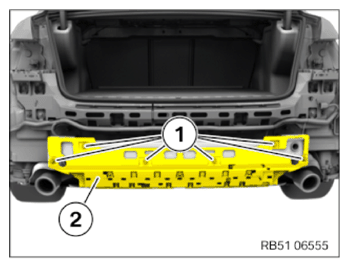

• Position brace for the rear bumper (2) on the support.
• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

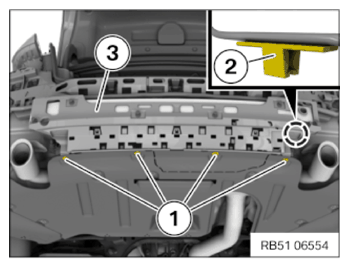

• Clip in the cable clips (2) on the inside of the brace for the rear bumper (3).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Rear bumper cover mount to support for rear bumper
  Hexagon screw for thermoplastic	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

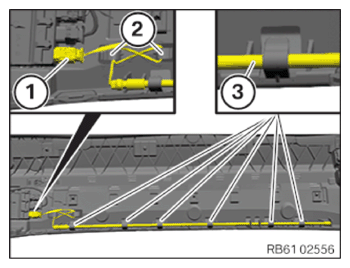

• Clip in the lower sensor line (3) from above.
• Fasten the cable to the bracket (2).
• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
