Install the control unit for the contactless trunk opening

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

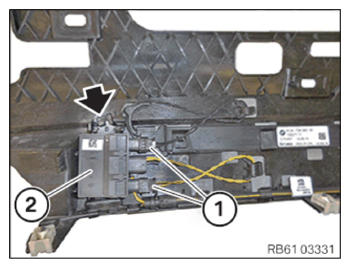

Position control unit (2) and clip into latch mechanism (arrow).
Insert and connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

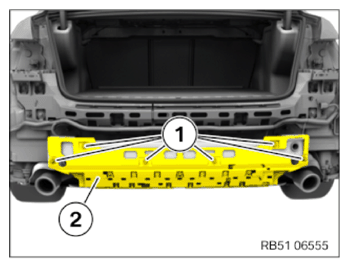

Position brace for the rear bumper (2) on the support.
Install the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

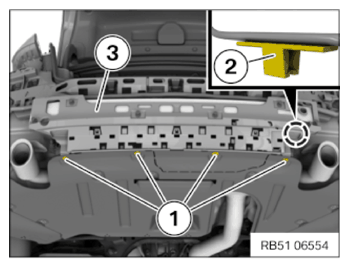

Clip in the cable clips (2) on the inside of the brace for the rear bumper (3).
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Rear bumper cover mount to support for rear bumper
Hexagon screw for thermoplastic	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
