Removing the seat-belt extender controller (LCPA)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING ARMREST SIDE SECTION .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .

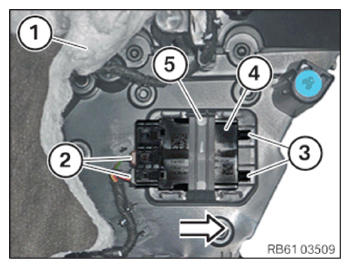

- Slide insulation (1) aside as shown.
- Unlock plug connections (2) and disconnect.
- Unlock the latch mechanisms (3).
- Pull the seat-belt extender controller (LCPA) (4) in arrow direction from the holder (5).
