Installing the seat-belt extender controller (LCPA)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

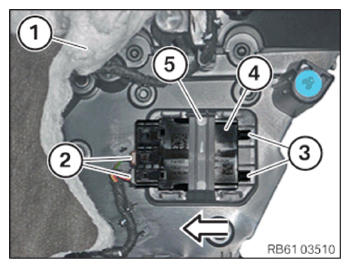

- Position the seat-belt extender controller (LCPA) (4) on the holder (5) and move in the direction of arrow, until the detents (3) engage.
- Connect connector (2).
- Route the insulation (1) correctly.
Follow-up work
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
