Install the control unit for the power tailgate (HKL)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

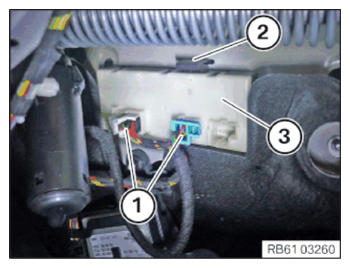

- Correctly position the control unit (3) and engage it into the detent (2).
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
