Removing the seat-heating module

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) (M4 2021-2023)

NOTE: Description is for left component only. Procedure on the right side is identical.

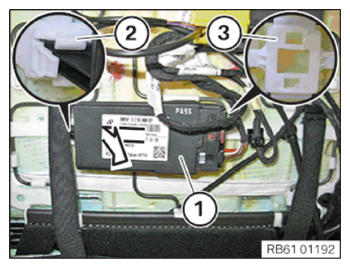

Release and remove the seat-heating module (1) in direction of arrow from the bracket (3) and the guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.

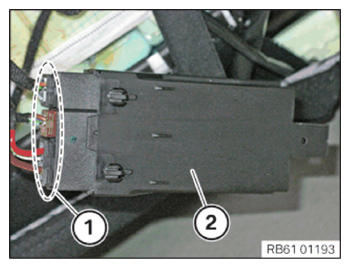

Unlock and disconnect all the connectors (1) on the seat-heating module (2).

Courtesy of BMW OF NORTH AMERICA, INC.
