Removing the driver's seat module (SMFA)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING FRONT SEAT .

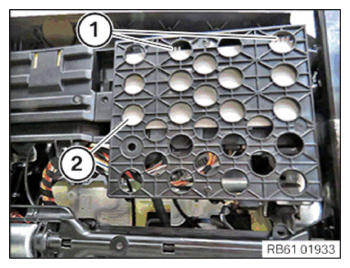

- Unlock the retaining lugs (1).
- Pull the driver's seat module (SMFA) (2) to the front.

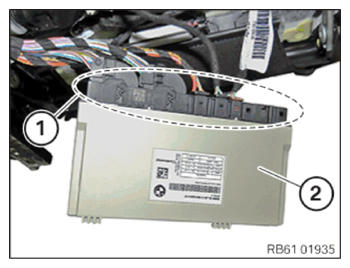

- Unlock plug connection (1) and disconnect.
- Take the driver's seat module (SMFA) (2) out of the holder.
