Remove LIN power distribution box
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

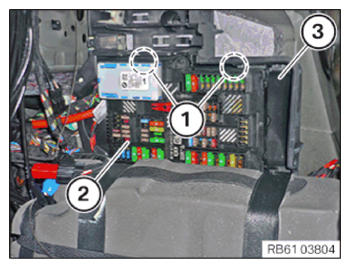

- Unlock detents (1) and feed out the power distribution box (2) from holder (3).

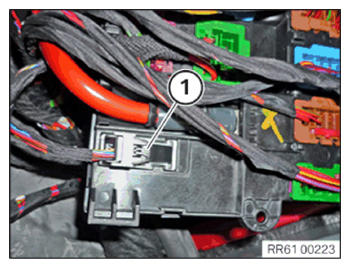

- Unlock plug connection (1) and disconnect.

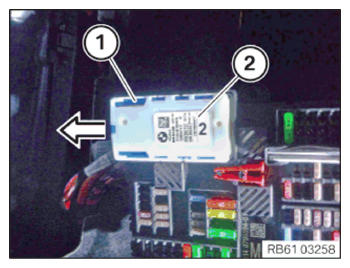

- Release locking mechanism (1) in direction of arrow.
- Remove LIN power distribution box (2).
