Installing the LIN power distribution box
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

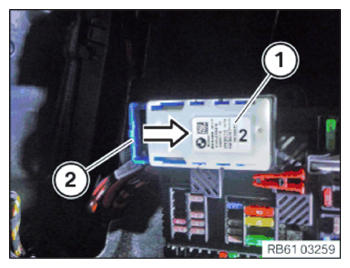

- Correctly position the LIN power distribution box (1) and shift the locking mechanism (2) in the direction of the arrow.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

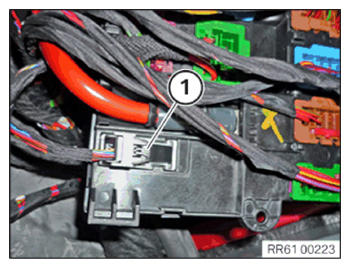

- Connect the connectors (1) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

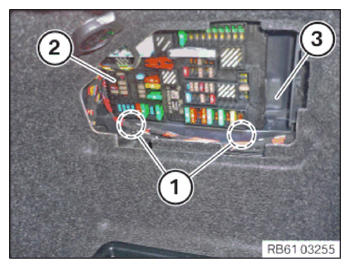

- Correctly position the power distribution (2) and engage in holder (3).
Detents (1) must engage correctly.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
