Removing the 12-V power socket in the luggage compartment
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to IF INSTALLED: REMOVING EMERGENCY WHEEL .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

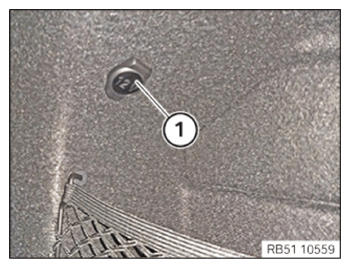

- Release the 12 V power socket on the retaining ring (1).NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

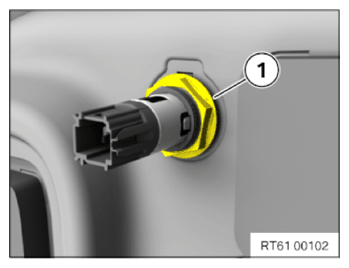

- Remove the 12-V power socket (1) from the luggage compartment wheel arch trim panel.
