When replacing the roof function center (FZD): Remounting the reading light

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

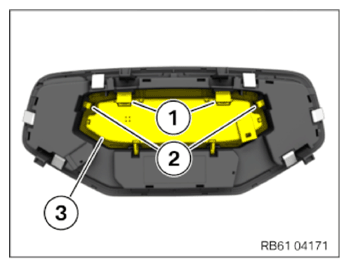

Unlock the clamps (1) and the safety catches (2).
Remove the reading lamp (3) from the roof function center (FZD).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

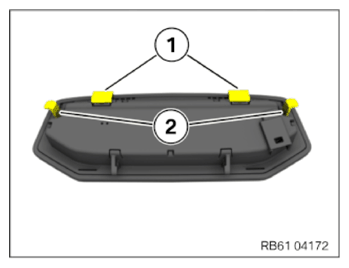

Check the clamps (1) and the safety catches (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The clamp or safety catch is damaged.

Measure
- Replace reading light.
Position the reading light (3) in the roof function center (FZD) and lock in place with the clamps (1) and the safety catches (2).

Courtesy of BMW OF NORTH AMERICA, INC.
