Installing the radio remote control receiver
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

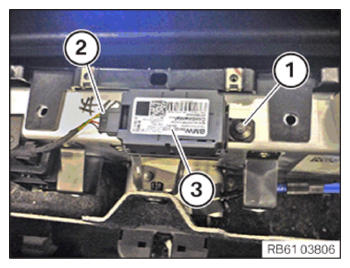

- Correctly position the receiver for the radio remote control (3).
- Fasten expanding rivet (1).
- Connect connector (2).
Follow-up work
- Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
- Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
- Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
- Refer to INSTALLING THE REAR SEAT .
