Remove the brake light switch
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .

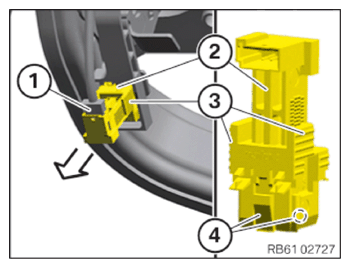

- Unlock plug connection (1) and disconnect.
- Operate and hold brake pedal
- Pull brake light switch (2) from holder (3) in the arrow direction.
- Press together detents (4) and unclip holder (3) from the brake pedal.
