Install brake light switch
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

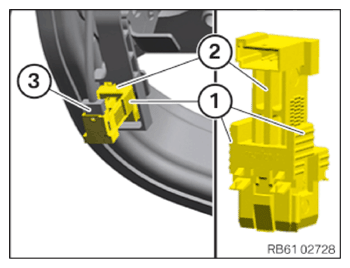

- Clip the holder for the brake light switch (1)
into the brake pedal.
- Press the brake pedal fully.
- Slide brake light switch (2)
into holder (1)
up to the stop.
- Counter support holder (1)
and move the brake pedal slowly back to the initial position.
- Connect connector (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
