Removing shift paddle for automatic transmission
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
Wheel alignment is not necessary after removal, installation or replacement.
Wheel alignment is not necessary after removal, installation or replacement.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING AIRBAG UNIT (M SPORT STEERING WHEEL) .
NOTE:
Description is for left component only. Procedure on the right side is identical.

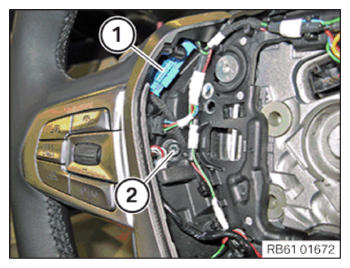

- Disconnect connector (1) and remove cable to shift paddle.
- Loosen screw (2).

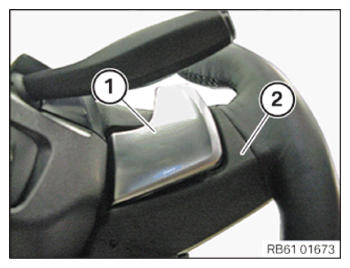

- Remove shift paddle (1) from steering wheel (2) and remove associated access line.
