Installing the shift paddle for the automatic transmission

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Insert the access line (1) into the rear of the steering wheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

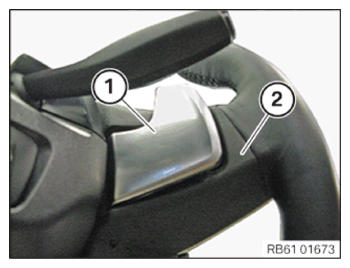

Position the shift paddle (1) on the steering wheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

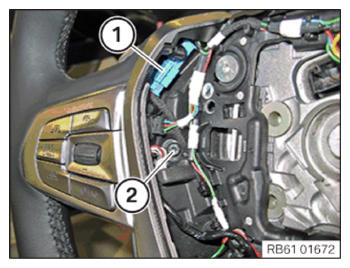

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Shift paddle
Screw TS5x12	Tightening Torque	2 Nm

Insert the cable and connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
