Removing the Roof function center (FZD)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

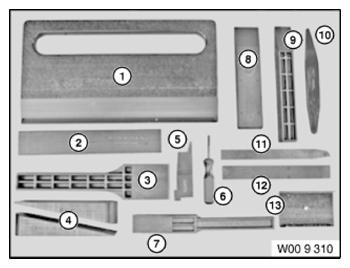

- Get the set of special tools 0 493 752 (00 9 329)
ready.

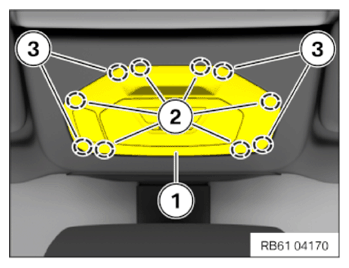

- Carefully unlock and remove the roof function center (FZD) (1) with a suitable tool at the clamps (2) and the safety catch (3).
- Unlock associated plug connection and disconnect.
