Installing Roof function center (FZD)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Check

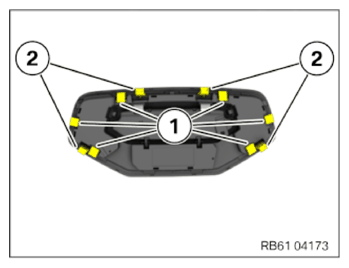

Check the clamps (1) and the safety catch (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The clamp or safety catch is damaged.

Measure
- Replace the roof function center (FZD).
Connect corresponding connectors and lock.

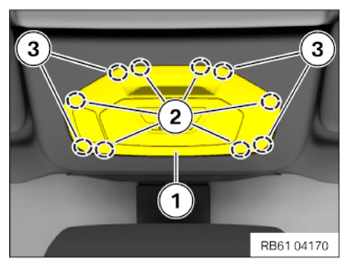

Install the roof function center (FZD) (1) and engage with the clamps (2) and the safety catch (3).

Courtesy of BMW OF NORTH AMERICA, INC.
