Remove light operating unit

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .

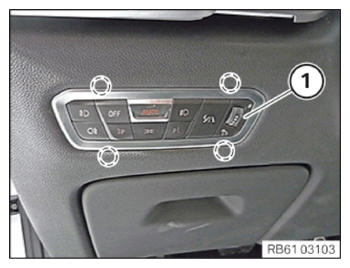

Unclip light operating unit (1) at the marked positions from the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

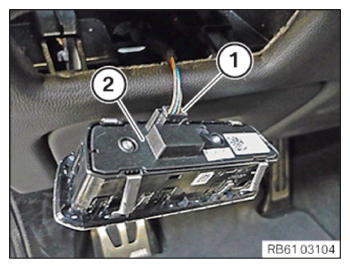

Unlock the connector (1) on the light operating unit (2) and disconnect it.

Courtesy of BMW OF NORTH AMERICA, INC.
