Installing the light operating unit

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

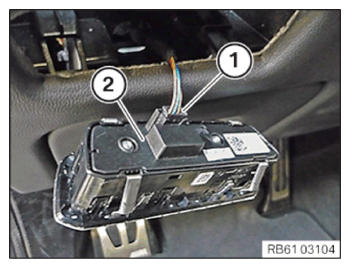

Connect the connector (1) to the light operating unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

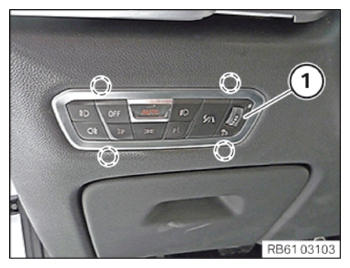

Position the light operating unit (1) correctly and clip in at the marked points.

G15340288

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
