Removing the ring antenna
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .

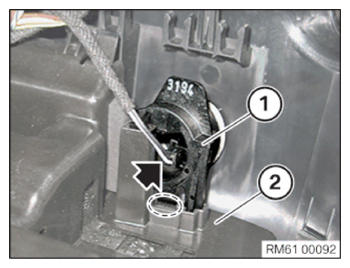

- Unlock the plug connection (arrow) and disconnect.
- Feed the ring antenna (1) out of the steering column shroud lower section (2).
