Installing the low power distribution box
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

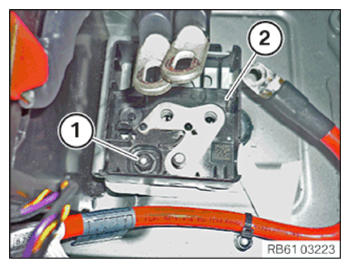

- Insert the power distribution box (2).
- Tighten plastic nuts (1).TIGHTENING TORQUES SPECIFICATION

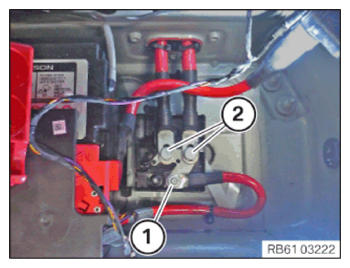

Power distribution box Plastic nut with flange tightening torque 2.6 Nm - Tighten the positive battery cable using the nut (1).TIGHTENING TORQUES SPECIFICATION
Positive battery cable Positive pole screw tightening torque 15 Nm - Tighten the positive battery cables using the screws (2).TIGHTENING TORQUES SPECIFICATION

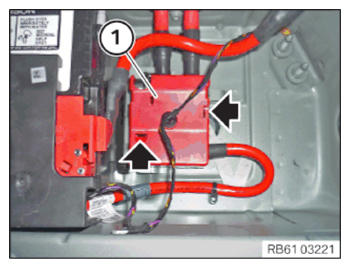

Positive battery cable M8x16 screw tightening torque 15 Nm - Clip in the cover (1).
Follow-up work
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
