Removing power distribution for front positive battery cable

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS  .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING WINDSHIELD PANEL COVER .
• Refer to REMOVING TRAILING LINK AT SPRING BOLT .
• Refer to REMOVING THE SEAL FOR THE HOOD REAR .
• Refer to REMOVING THE CENTER COWL UPPER PART .

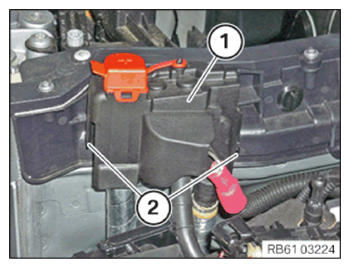

• Release the covers (1) on the detents (2).
• Remove the cover (1) in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

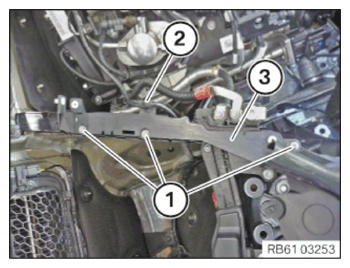

• Loosen screws (1).
• Loosen the cable clip (2).
• Remove the cover (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

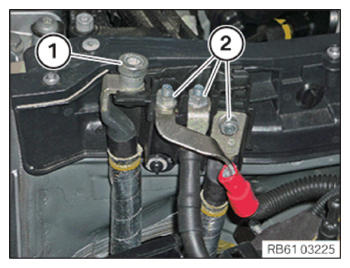

• Release the screw (1) and feed out the corresponding cables.
• Undo the nuts (2) and feed out the corresponding cables.

  Courtesy of BMW OF NORTH AMERICA, INC.

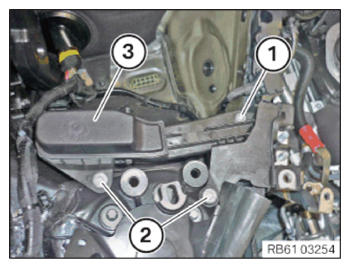

• Loosen screw (1).
• Loosen screws (2).
• Feed out the power distribution box (3) in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

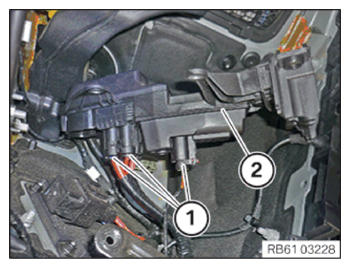

• Unlock plug connection (1) and disconnect.
• Remove the power distribution (2).

Courtesy of BMW OF NORTH AMERICA, INC.
