Install the front power distribution box

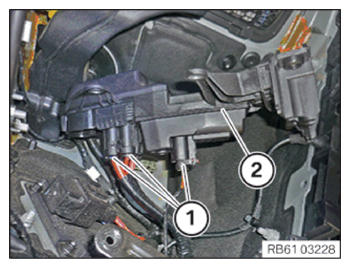

• Connect the connector (1) to the power distribution box (2) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

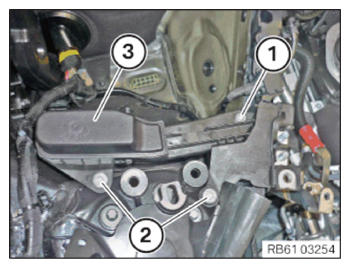

• Position the power distribution box (3) and feed it in downwards.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Front power distribution box
  M8x35 screw	tightening torque	13 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Front power distribution box
  Screw TS5x16	Tightening Torque	2.5 Nm

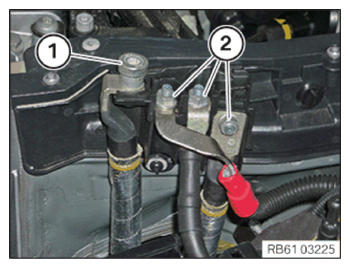

• Feed in the accompanying cable and tighten the nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Positive pole screw
  Flange nut M8	tightening torque	15 Nm

• Feed in the accompanying cable and tighten the screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Auxiliary terminal for jump starting
  Positive battery cable	tightening torque	15 Nm

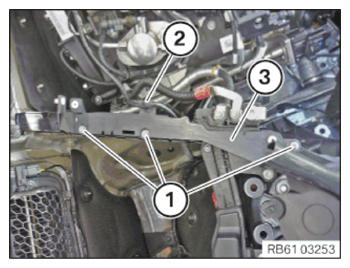

• Correctly position cover (3) and tighten screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Front power distribution box sealing frame
  Bolt RF5x25	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the cable clips (2).

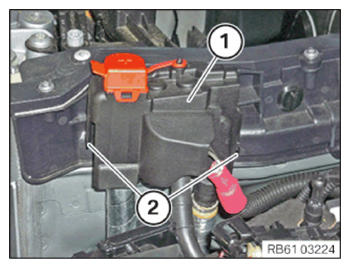

• Feed in the cover (2) in a downwards direction.
• The detents (1) must be locked correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS  .
