Socket housings, 5-pin, 8-pin, System MQS/MPQ (M4 2021-2023)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:
- MQS (Micro Quadlock System)
- MPQ, width 2.8 mm (Micro Power Quadlock)
- MPQ, width 5.2 mm (Micro Power Quadlock)
Socket housing, 5-pin (Hybrid System MQS/MPQ)

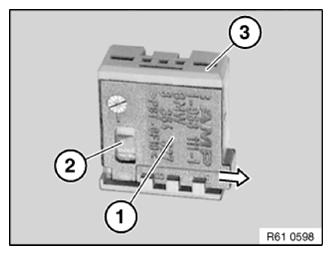

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).
Socket housing, 8-pin (MQS):

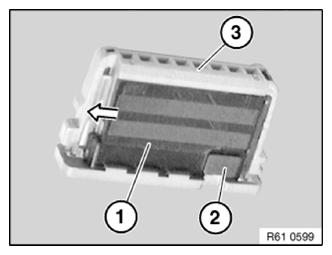

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

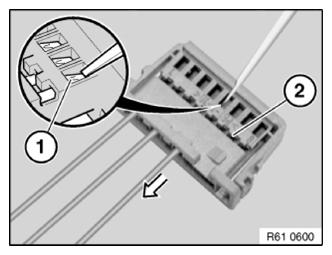

Hold down snap-in hooks (1) of contact and pull cable with contact as far as secondary lock (2).

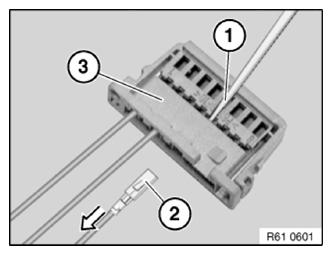

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).
