Inline plugs, 4-, 10-pin, System Elo
(M4 2021-2023)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

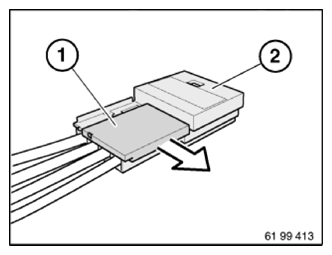

Detach fastener (1) from contact carrier (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

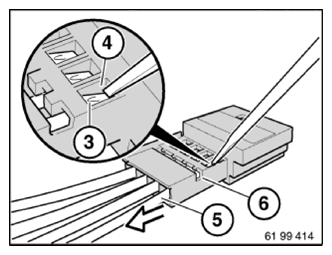

Hold down safety catch (3) of defective contact and pull cable and contact up to secondary lock (6).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

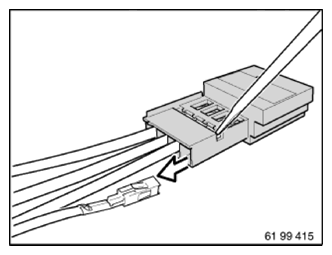

Hold down safety catch once again in secondary lock and pull cable and contact completely out of contact carrier.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
