Inline plugs, 3-, 6-pin, System Elo-Power 2.8
(M4 2021-2023)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

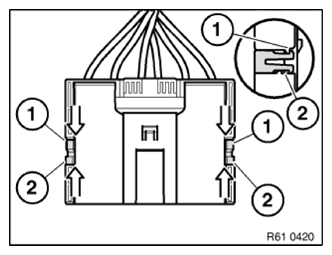

Press locking hooks (1) in arrow direction and disengage. Then unlock locking hooks (2) and remove locking mechanism.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

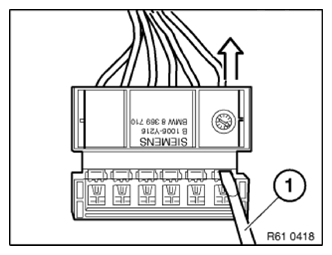

Press down safety catch with screwdriver (1) and pull out cable with contact towards rear.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
