Inline plugs, 2-pin, System MPQ 2.8 (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

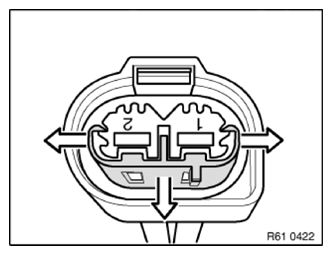

Press catch on outside in arrow direction and remove towards top.

G15340114Courtesy of BMW OF NORTH AMERICA, INC.

Press down snap-in hooks (1) with screwdriver and pull out cable and contact (2) towards rear.

G15340115Courtesy of BMW OF NORTH AMERICA, INC.
