In-line plugs, 2-pin, System MDK 3 plus 2.8
(M4 2021-2023)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

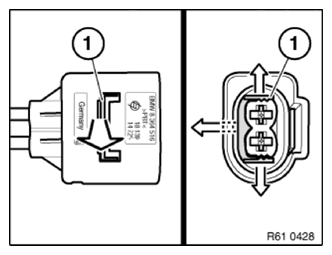

Unlock lock (1) on outside at safety catch and slide out lock (1) to side.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
