In-line connectors, 24-/44-pin, Hybrid System MQS/MPQ (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing:

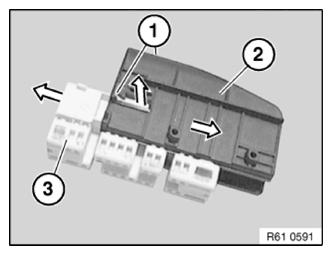

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from contact carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the socket contacts.

G15340104

Courtesy of BMW OF NORTH AMERICA, INC.

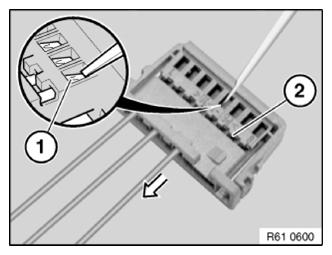

Hold down safety catch (1) of contact bushing in opening of contact carrier with a small screwdriver.

Pull wire with contact bushing in arrow direction as far as secondary lock (2).

G15340105

Courtesy of BMW OF NORTH AMERICA, INC.

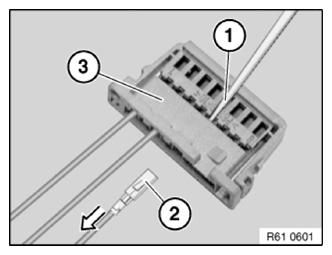

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact bushing (2) completely out of contact carrier (3).

G15340106

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

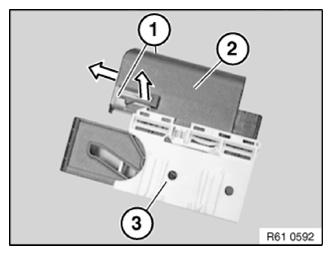

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from housing carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the pin contacts in the contact carriers.

G15340107

Courtesy of BMW OF NORTH AMERICA, INC.

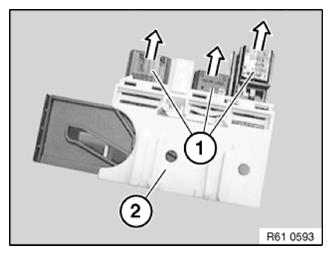

Pull contact carrier (1) out of housing carrier (2).

The pin contacts are pulled out of a contact carrier as described under "Socket housing".

G15340108

Courtesy of BMW OF NORTH AMERICA, INC.
