Connector housing, LCC contact (load current contact) (M4 2021-2023)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 0 317
Socket housing:

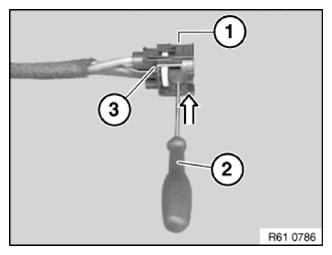

Press lock (1) with suitable tool (2) in arrow direction out of socket housing (3).

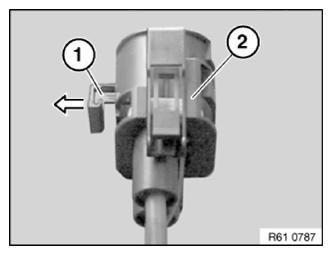

Pull lock (1) out of socket housing (2).

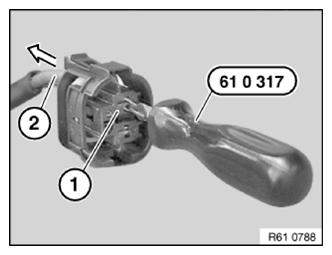

Insert special tool 61 0 317 into socket housing (1) and pull out wiring with LCC contact (2) in arrow direction.
Pin housing:

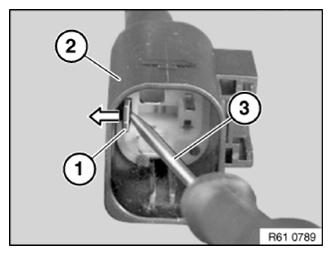

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in arrow direction.

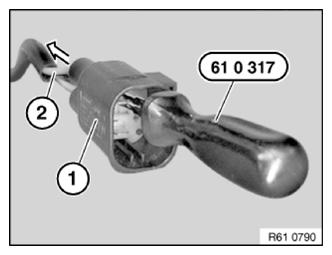

Insert special tool 61 0 317 into pin housing (1) and pull out wiring with LCC contact (2) in arrow direction.
