Circular connector, 13-pin, system D2.5 (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

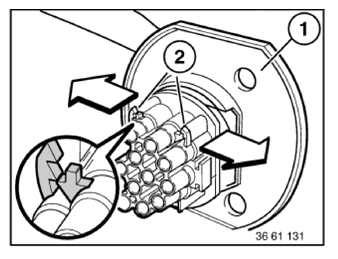

Detach rubber grommet (1).

Carefully pull out locking mechanism (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

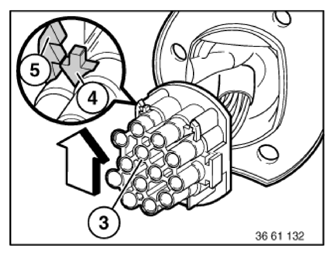

Shift lower section of connector (3) in arrow direction until retaining lugs (4) snap into release groove (5).

Courtesy of BMW OF NORTH AMERICA, INC.

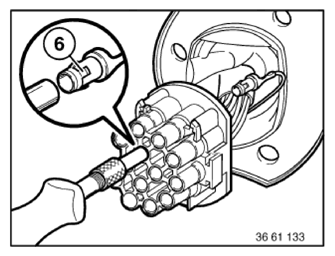

With special tool 61 0 303, press down retaining lugs (6) of corresponding contact and pull out cable.

Courtesy of BMW OF NORTH AMERICA, INC.
