Replacing the TRSVC control unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

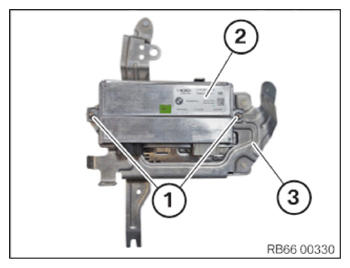

- Loosen nuts (1) .
- Remove the TRSVC control unit (2)
from the bracket (3)
.
- Replace the TRSVC control unit.
Parts: Surround view camera control unit
- Position the TRSVC control unit (2) on the bracket (3) .
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| TRSVC control unit on holder | ||
| Nut | tightening torque | 3.3 Nm |
