Installing the top view camera
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

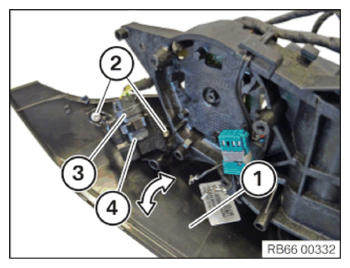

- Install and correctly position the top view camera (4).
- Connect connectors (3) and lock.
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Top view camera to vehicle exterior mirror | ||
| screw | Tightening torque | 0.85 Nm |
- Push lower section of the mirror housing (1) in the direction of arrow to the front and position it correctly.

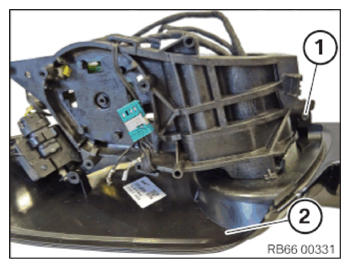

- Tighten screw (1) on the lower section of the mirror housing (2).
TIGHTENING TORQUES SPECIFICATION
| Housing to vehicle exterior mirror | ||
| tightening torque | 0.85 Nm | |
Follow-up work
- Refer to INSTALLING THE RETAINING RING ON THE OUTSIDE REARVIEW MIRROR .
- Refer to INSTALLING THE EXTERIOR MIRROR ADJUSTMENT DRIVE .
- Refer to INSTALLING THE PROTECTIVE CAP OF THE EXTERIOR VEHICLE MIRROR .
- Refer to INSTALLING THE MIRROR GLASS .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
