Removing the rearview camera (RFK)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING TAILGATE TRIM PANEL .

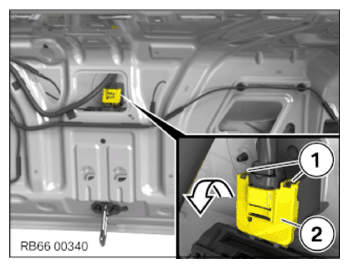

- Loosen the detents (1).
- Open the lid of the rearview camera (RFK) (2) in the arrow direction.

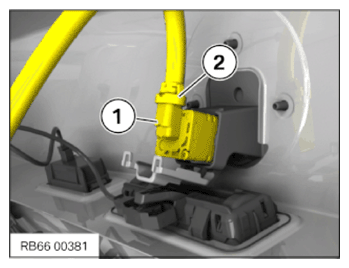

- Guide rearview camera (RFK) (1) out of the base of the emblem.
- Unlock and disconnect the plug (2).
- Remove rearview camera (RFK) (1).
