Installing the top view camera

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

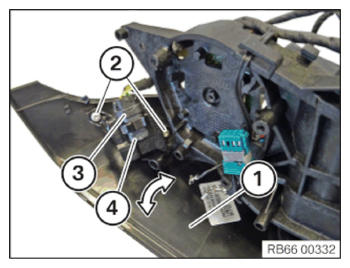

Install and correctly position the top view camera (4).
Connect connectors (3) and lock.
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Top view camera to vehicle exterior mirror
screw	Tightening torque	0.85 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

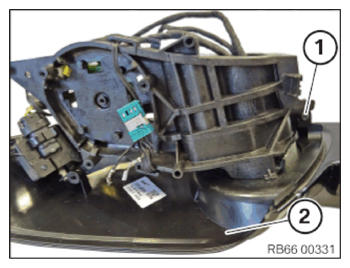

Push lower section of the mirror housing (1) in the direction of arrow to the front and position it correctly.
Tighten screw (1) on the lower section of the mirror housing (2).

TIGHTENING TORQUES SPECIFICATION

Housing to vehicle exterior mirror
tightening torque		0.85 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE RETAINING RING ON THE OUTSIDE REARVIEW MIRROR .
Refer to INSTALLING THE EXTERIOR MIRROR ADJUSTMENT DRIVE .
Refer to INSTALLING THE PROTECTIVE CAP OF THE EXTERIOR VEHICLE MIRROR .
Refer to INSTALLING THE MIRROR GLASS .
