Install the rear view camera (RFK)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

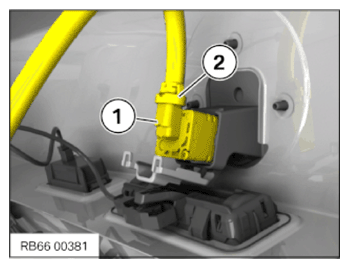

- Check the sealing ring (1) for fit accuracy.
- Connect connectors (2) and lock.

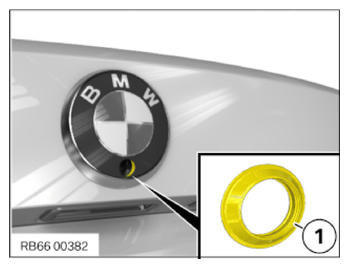

- Insert the rearview camera (RFK) (1) into the socket of the emblem.

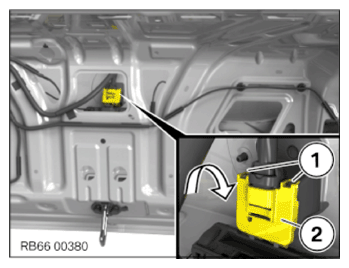

- Close the lid for the rearview camera (RFK) (2) in the arrow direction and clip in with the detents (1).
Follow-up work
- Refer to INSTALLING THE TAILGATE TRIM PANEL .
