Install KAFAS camera (high version)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

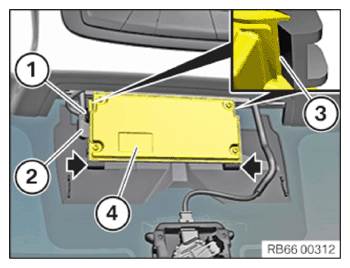

- Feed in the KAFAS camera (4) in the guides (arrows) and engage it in the snap-in lugs (3).
- Make sure that the KAFAS camera (4) is engaged correctly at the snap-in lugs (3).
- Connect connectors (2) and lock.
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
