Remove KAFAS camera (Mid variant)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

NOTE: TECHNICAL INFORMATION
Heating of the KAFAS camera is integrated in the windshield. If the heating is defective, the windshield must be replaced.

Preliminary work

Refer to REMOVING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .

NOTE: RISK OF DAMAGE
Improper unlocking of the KAFAS camera.
Damage to the retaining hooks of the KAFAS camera holder.

Unlock the retaining hook with a suitable tool carefully.

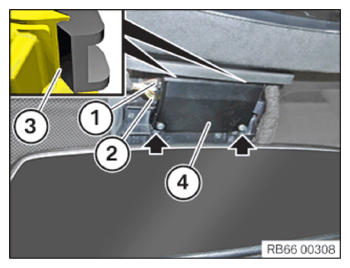

Unlock plug connection (1) and disconnect.
Unlock plug connection (2) and disconnect.
Unlock the snap-in lugs (3).
Guide KAFAS camera (4) out at the guides (arrows) and remove.
