Install KAFAS camera (Mid variant)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

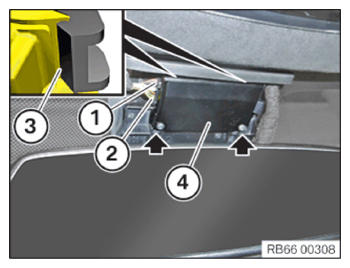

Feed in KAFAS camera (4) on the guides (arrows) and engage the retaining lugs (3).
Make sure that the KAFAS camera (4) engages correctly in the snap-in lugs (3).
Connect connectors (2) and lock.
Connect connectors (1) and lock.

G15341469

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
