Installing the side rear radar sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

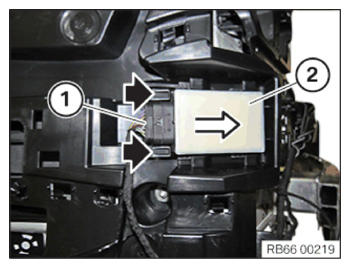

- Position side radar sensor (2) correctly and slide it in the arrow direction.
- Ensure that the detents (arrows) engage correctly.
- Connect connector (1).
NOTE:
TECHNICAL INFORMATION
If the component described below has not been installed as yet, it should be retrofitted.
If the component described below has not been installed as yet, it should be retrofitted.

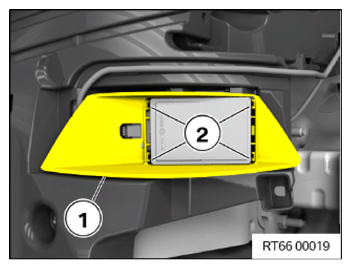

- Position the absorber (1) and lock with the snap-in lugs (2).
- Ensure that absorber (1) engages correctly in snap-in lugs (2).
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
