Removing the front side radar sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the appropriate service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the appropriate service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
NOTE:
Description is for left component only. Procedure on the right side is identical.

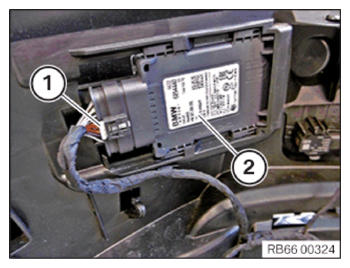

- Unlock and disconnect plug connection (1) on side radar sensor (2).

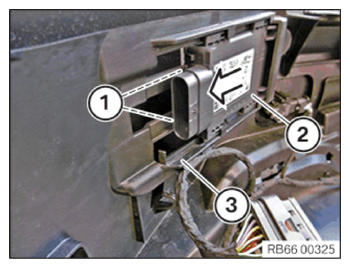

- Unlock lock (1).
- Push the side radar sensor (2) in the direction of arrow from the holder (3) and remove it.
