Installing front side radar sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Slide in the side radar sensor (2) in the arrow direction into the holder (3).
- Lock the lock (1).
- Ensure that the lock (1) is locked correctly.

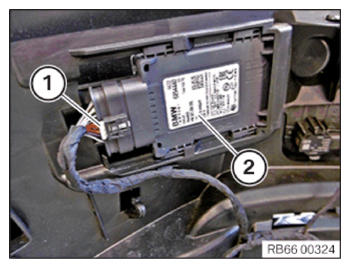

- Connect and lock the connector (1) on the side radar sensor (2).
Follow-up work
