Removing the front radar sensor long range (FRSF)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

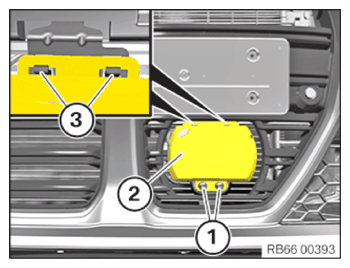

- Loosen screws (1).
- Push the front radar sensor long range (FRSF) (2) slightly to the top and feed out of the guides (3).
- Pull the front radar sensor long range (FRSF) (2) slightly out of the bumper cover grille.

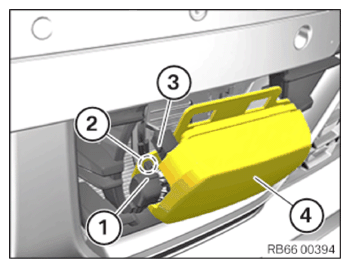

- Unlock plug connection (1) and disconnect.
- Unclip the cable clip (2).
- Unlock plug connection (3) and disconnect.
- Remove the front radar sensor long range (FRSF) (4).
