Removing tie rod
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to REMOVING THE TIE ROD END .
- Refer to REMOVING THE BELLOWS FOR THE STEERING GEAR .
- Refer to CHECKING THE RACK FOR DAMAGE .
NOTE:
TECHNICAL INFORMATION
To avoid damage to the steering shaft and its bearing, the rack must be positioned in the steering gear as far as possible.
To avoid damage to the steering shaft and its bearing, the rack must be positioned in the steering gear as far as possible.
NOTE:
The following steps are only required for work on the right-hand track rod.

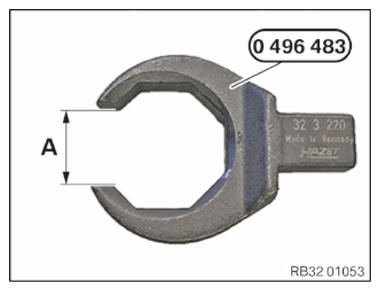

- Determine the dimension (A) on the special tool 0 496 483 (32 3 220) and increase to 30 mm .
- After use, protect special tool 0 496 483 (32 3 220) against corrosion.

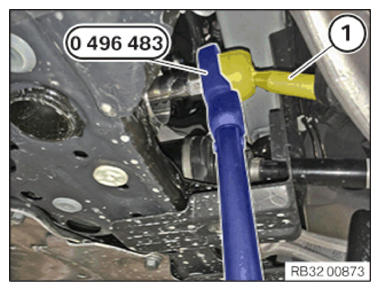

- Release the tie rod (1) with the special tool 0 496 483 (32 3 220) and remove .
