Removing locking element for center armrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Fold the rear seat backrest at the center

NOTE: For a better overview the removed condition is shown here.

Preliminary work

Refer to REMOVING REAR CENTER ARMREST .
Refer to REMOVING THE TRIM FOR THE CENTER ARMREST .

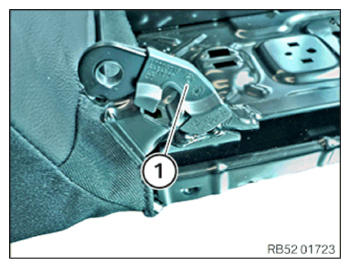

Unclip locking element for center armrest (1).

Courtesy of BMW OF NORTH AMERICA, INC.
