Installing the upper rear wishbone

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

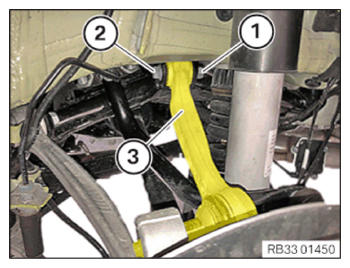

Position the upper rear wishbone (3) on the rear axle support and guide it on the wheel carrier.
Replace the screw (1) and the nut (2).
Parts: Screw, nut
Position nut (2) and tighten screw (1) hand-tight.
The screw connection is tightened with the torque wrench later in the NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

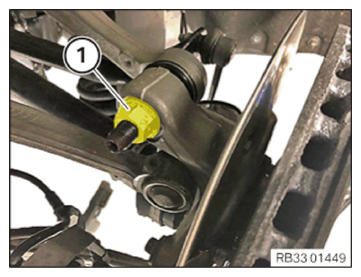

Replace nut (1).
Parts: Nut
Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUE SPECIFICATIONS

Upper wishbone at front/rear to wheel carrier
M14 Replace nut.	Tightening torque	165 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR LEFT WHEEL .
Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
Refer to TIGHTENING THE SCREW CONNECTION OF THE UPPER REAR CONTROL ARM TO THE REAR AXLE SUPPORT .
Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
