Removing the front top right wishbone
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
To remove the screw on the upper front wishbone for the first time, the rear axle support must be lowered in G82 and G83 until 01/2021.
For additional information see: 33 32 910 ADDITIONAL WORK IN CASE OF A SCREW THAT CANNOT BE DISASSEMBLED .
To remove the screw on the upper front wishbone for the first time, the rear axle support must be lowered in G82 and G83 until 01/2021.
For additional information see: 33 32 910 ADDITIONAL WORK IN CASE OF A SCREW THAT CANNOT BE DISASSEMBLED .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
NOTE:
TECHNICAL INFORMATION
In the event of misuse or a deformed rear axle guide, the wheel carrier must always be replaced!
In the event of misuse or a deformed rear axle guide, the wheel carrier must always be replaced!
Preliminary work
- Refer to REMOVING THE REAR LEFT WHEEL .
- Refer to LOOSENING THE ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR .
NOTE:
TECHNICAL INFORMATION
To remove the screw on the upper front wishbone for the first time, the rear axle support must be lowered in G82 and G83 until 01/2021.
For additional information see: 33 32 910 ADDITIONAL WORK IN CASE OF A SCREW THAT CANNOT BE DISASSEMBLED .
To remove the screw on the upper front wishbone for the first time, the rear axle support must be lowered in G82 and G83 until 01/2021.
For additional information see: 33 32 910 ADDITIONAL WORK IN CASE OF A SCREW THAT CANNOT BE DISASSEMBLED .
Removing the top front wishbone
- Release the nut (1) for the front wishbone at the top on the wheel carrier.

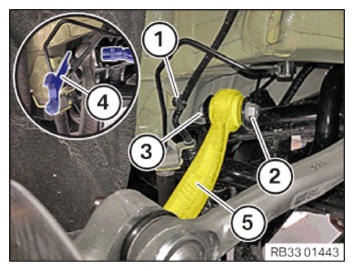

- Release the cable (1) for the electromechanical parking brake from the holder.
- Loosen screw (2). Provide counter support to nut (3) with the standard tool (4).
Standard tool: Open-end wrench for hexagon head
Open-end wrench for hexagon
Open-end wrench for hexagon
- Remove nut (3).
- Remove top front wishbone (5).
Removing the upper front wishbone (G82 and G83 until 01/2021)
Precondition
Rear axle support is lowered.
- Release the nut (1) for the top front wishbone on the wheel carrier.

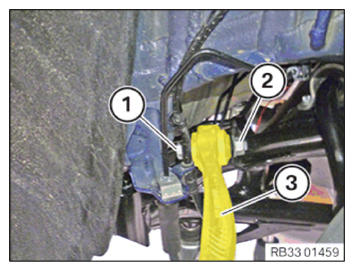

- Release the screw (1). In doing so, counter support at the nut (2).
- Remove the nut (2).
- Remove the top front wishbone (3).
