Installing the lower rear wishbone
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
In order to tighten the screw connection with the torque wrench after adjustment work, the direction of insertion of the eccentric screw must be reversed.
NOTE:
TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position.
Incorrect assembly is possible. Ensure correct installation position.

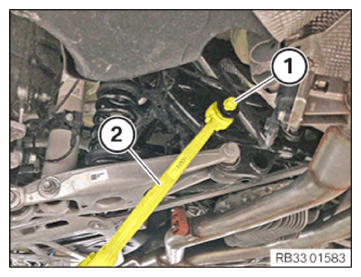

- Position the wishbone at the rear bottom (2) on the rear axle support.
- Replace the screw (1).
Parts: Screw
- Feed in the screw (1) and screw in by a few revolutions.

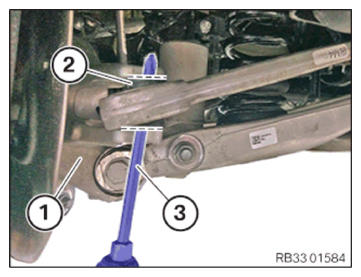

- Position the wishbone at the rear bottom on the wheel carrier (1). Thus, align the rubber mount (2) with the wheel carrier using the standard tool (3).

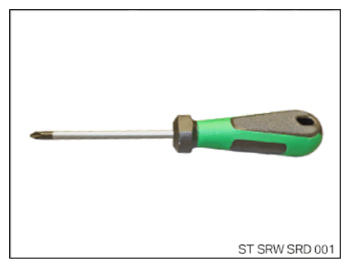

Standard tool: Screwdriver for cross-grinding
Screwdriver for cross-head
Screwdriver for cross-head

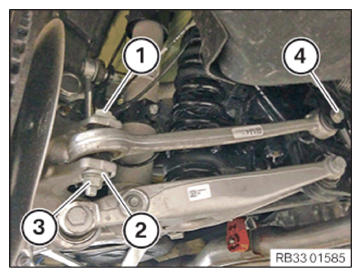

- Replace the eccentric screw (1), the eccentric washer (2) and the nut (3).
Parts: Eccentric screw, eccentric washer, nut
- Insert the eccentric screw (1) without fail into the wheel carrier from the top.
- Insert the eccentric washer and hand-tighten the nut (3). Turn the eccentric to the mark.
The screw connection is tightened with the torque wrench after the wheel alignment.
- Tighten down screw (4).
TIGHTENING TORQUE SPECIFICATIONS
| Lower rear wishbone to rear axle support | ||
| M12 Replace screw. | Tightening torque | 100 Nm |
NOTE:
Perform the steps on the left and right side.

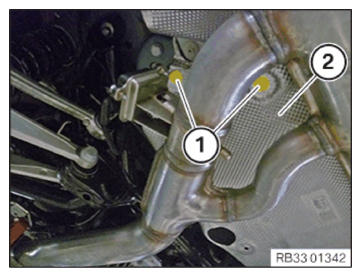

- Tighten screws (1) on heat shield (2).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |

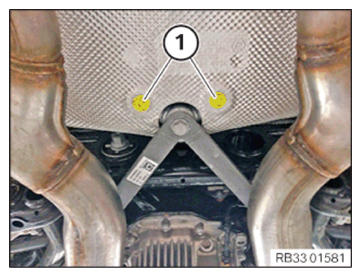

- G83: Tighten screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
Follow-up work
