Replacement: Remount the thermostat and the support of the charge air line
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

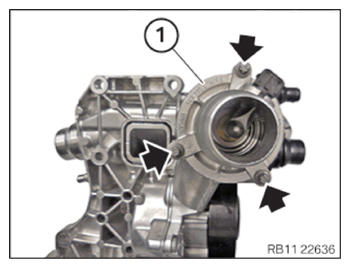

- Remove screws (arrows).
- Guide out and remove the thermostat (1)
.

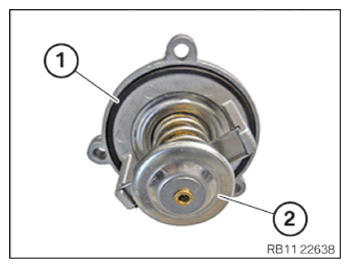

- Replace the sealing ring (1)
on the thermostat (2)
.
Parts: Sealing ring

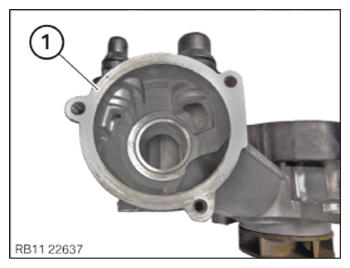

- Make sure that the sealing surface (1)
is free of oil, grease and cleaning agents.
- Guide in and install thermostat (1) .
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS

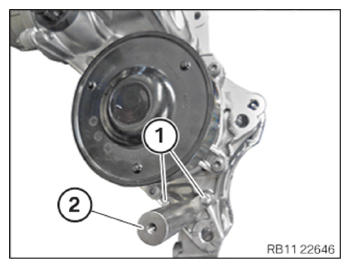

Coolant thermostat to coolant pump M6X25 Tightening torque 8 Nm - Loosen screws (1) .
- Guide out the support (2)
for the charge air line and remove it.
- Guide in the support (2) for the charge air line and install it.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Charge air line support to coolant pump | ||
|---|---|---|
| M6X16 | Tightening torque | 8 Nm |
